Product description

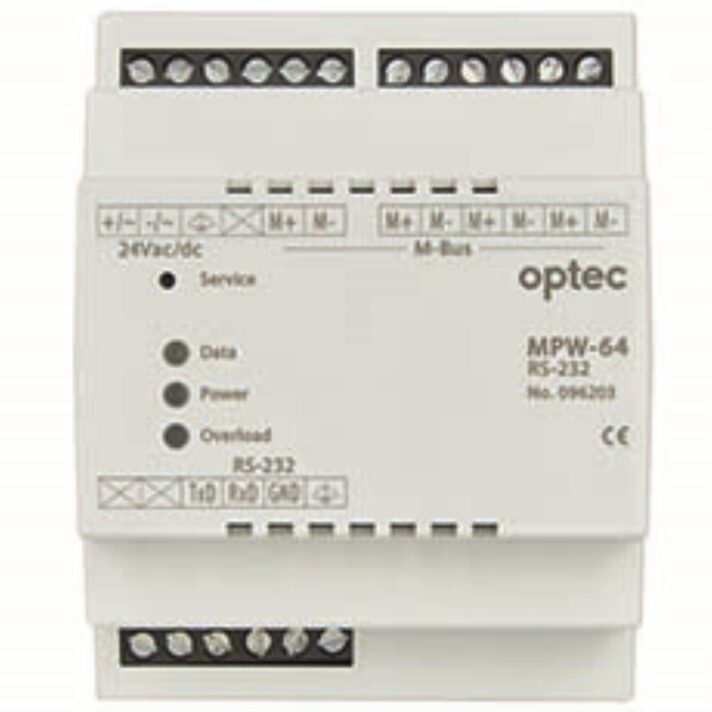

With the MPW-64 M-Bus level converter, up to 64 M-Bus end devices (each with a standard load of 1.5mA) can be connected to an M-Bus master via an RS-232 connection. The level converter converts the signals coming from the M-Bus master from the RS-232 interface to M-Bus signal levels. The M-Bus master is connected to the level converter either via an RJ-12 socket or terminals 5 to 7 (TD, RD and GND).
Technical features:
- Supply voltage 20V to 28V AC/ DC
- M-Bus voltage 36V to 42V
- Max. M-Bus quiescent current 90mA (60 standard loads)
- Overcurrent threshold 110mA
- Galvanic isolation between RS-232 and MPW-60
- Transmission rate RS-232: 300 ... 9600 baud
- M-Bus connection 4 separate terminal pairs max. 2.50mm²
- RS-232 connection RJ-12 socket or
- RS-232 connection 3 terminals max. 2.5mm²
- Operating temperature 0 ... 55°C
- Relative humidity 0 ... 90% (non-condensing)
- Housing in accordance with EN 50022 for mounting on 35 mm DIN rail,
- Dimensions (L x W x H) 108 x 90 x 66mm
Features and functions:
- M-Bus level converter for up to 64 M-Bus end devices (standard load: 1.5mA)
- M-Bus interface in accordance with DIN EN 13757, Part 2 and Part 3
- RS-232 interface galvanically isolated from the M-Bus
- Transmission rate 300 to 9600 baud
- Bit regeneration
- Echo cancellation
- Full M-Bus voltage from 36V to 42V
- Integrated overcurrent limiter
- Overvoltage protection
- 4 parallel M-Bus connections available
- Optionally available with 230Vac or 24VAC/DS power supply
